- Capacity range 5 to 20 l/h, up to 16 bar
- Broad-range power supply 110 - 240 V AC, -10% / +5%,
50/60 Hz, IP 65, 25 W
- Suitable for aggressive media
- Graphical display with multi-language menu
- Materials available: PVC, PP, PVDF and stainless steel
- Material consistency for the pumps and accessories
- Dosing head ventilation (plastic version)
- Supplied with connection sets (except stainless steel)
- Wall and floor mounting
- Double-ball valves ensure accurate dosing
- Precise pump settings using the keyboard
- Fully controllable stepper-motor drive
- Asynchronous mode for settings < 100%
- Infinitely adjustable stroke frequency from 0 to 100%
- Calibration function
- Two slow-mode settings for highly-viscous media
- Delivery rate displayed on various units
- Automatic diaphragm change program
- External control via standard signal 0/4…20 mA
- External control with pulse increase and reduction
- Level input with early warning and main alarm
- Release input
- Dosing control input
- Diaphragm rupture input
- Stroke feedback output
- Alarm relay output
- Batch dosing with interval and timer functions
- Ethernet interface (optional)

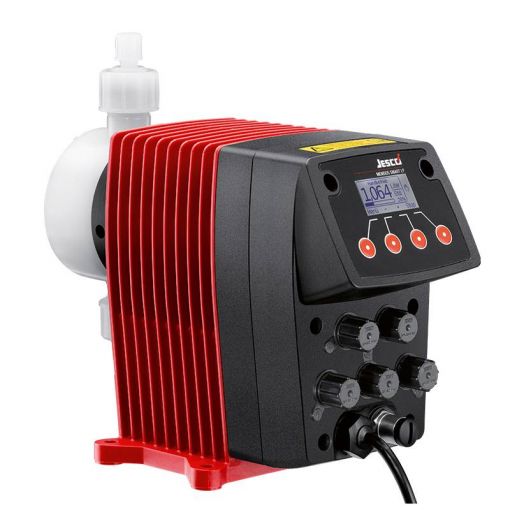

| MEMDOS SMART LP |
|
|
5 |
10 |
15 |
20 |
| Delivery capacity at max. pressure |
l/h |
|
5.3 |
10.8 |
14.2 |
19.2 |
| Max. supply pressure |
bar |
|
15 |
9 |
5 |
4 |
| Delivery capacity at medium pressure |
l/h |
|
6.0 |
11.3 |
14.7 |
19.7 |
| Average back pressure |
bar |
|
8 |
5 |
3 |
2 |
| Max. stroke frequency |
min-1 |
|
150 |
| Suction head for non-gassing media |
mWS |
|
3 |
| Max. inlet pressure |
mbar |
|
800 |
| Nominal valve width |
|
|
DN4 |
| Voltage supply |
|
|
110 - 240 V AC, -10% / +5%, 50/60 Hz |
| Power consumption |
W |
|
25 |
| Protection class |
|
|
IP65 (with covering caps on the connections) |
| Insulation class |
|
|
F |
| Weight PVC, PP, PVDF |
kg |
|
approx. 2.2 |
| Weight stainl. st. |
kg |
|
approx. 3.3 |
| Max. ambient temperature |
°C |
|
5 - 45 (5 - 40 with PVC parts) |
| Max. temperature of the medium |
°C |
|
80 (with PVC parts 35; with PP parts 60) |
